An Analytical Review of Belfast's Glider and Rail Services
An Analytical Review of Belfast's Glider and Rail Services: Operations, Enhancements, and Broader Transit Context
1. Executive Summary
This report provides an in-depth analysis of key components of Belfast's public transport system, focusing on the Glider Bus Rapid Transit (BRT) service and NI Railways services, with a particular emphasis on Botanic Train Station. It examines the operational status and service levels in June 2016, evaluates the extent of improvements to the present day, details current operations and future expansion plans for the Glider, and explores the reasons why BRT systems like the Glider are not more ubiquitously adopted across other urban centres.
In June 2016, Botanic Train Station was a significant node in Belfast's rail network, serving multiple lines and handling close to a million passengers annually. NI Railways, despite facing considerable financial pressures and a notable safety incident at Knockmore Junction that year, demonstrated operational resilience, maintaining high reliability and experiencing passenger growth. Since then, Belfast's rail infrastructure has undergone substantial transformation, principally through the Belfast Grand Central Station project. This has led to reconfigured service patterns, including new interchange requirements for some passengers using Botanic Station. Nevertheless, overall rail passenger numbers have shown growth, supported by investments in new and refurbished rolling stock, station upgrades beyond Grand Central, and modernised ticketing systems. Botanic Station itself has seen passenger figures recover and exceed pre-pandemic levels, underscoring its sustained importance.
The Glider service, introduced in 2018, has rapidly become a cornerstone of Belfast's public transport, contributing significantly to overall ridership. Operating on key East-West and Titanic Quarter corridors with features characteristic of "true BRT" systems—such as dedicated lanes, off-board fare collection, and high-frequency services—it has generally been well-received. Ambitious plans for a North-South Glider expansion are progressing, though they have been scaled back from initial proposals due to economic viability and funding constraints, with a revised completion timeline extending towards 2030.
The relatively limited adoption of BRT systems globally, despite their advantages in terms of cost-effectiveness and capacity compared to conventional buses, can be attributed to several factors. These include the high initial investment for dedicated infrastructure, political challenges in reallocating road space, public perception issues often favouring rail, and the phenomenon of "BRT creep," where systems are implemented without core BRT features, thereby diluting the concept's potential. The Belfast Glider's development offers valuable insights into both the successes achievable with a well-implemented BRT system and the persistent challenges related to funding and managing public expectations for expansion. Sustained investment, integrated multi-modal planning, and a clear focus on passenger needs remain critical for the continued enhancement of Belfast's public transport network.
2. Belfast's Rail Network Evolution: Botanic Station and NI Railways Since 2016
This section delves into the specifics of NI Railways services, focusing on Botanic Station as a key node. It establishes a benchmark for services in June 2016, examines the performance and challenges of NI Railways during that period, details the significant infrastructural and service transformations that have occurred since, particularly with the advent of Belfast Grand Central Station, and assesses the current role and service provision at Botanic Station. The aim is to provide a comprehensive understanding of how this part of Belfast's transport network has evolved and to what extent services have improved.
2.1 Botanic Train Station and NI Railways Services: June 2016 Benchmark
Botanic Train Station, a vital component of Belfast's public transport infrastructure, has a history dating back to its opening on 26 April 1976. Located in South Belfast, it has traditionally served the bustling Botanic area, students of Queen's University Belfast, and visitors to the nearby Belfast Botanic Gardens. In June 2016, it stood as one of the four primary railway stations within the city centre. The station's significance was reflected in its passenger usage; for the fiscal year 2015/16, which encompasses June 2016, Botanic Station recorded 986,782 passenger journeys.
In June 2016, Botanic Station was a key stop on several NI Railways lines, facilitating travel across various parts of Northern Ireland. These lines included:
- The Bangor Line
- The Derry~Londonderry Line
- The Larne Line
Service details for June 2016 (using May 2025 journey planner data as a proxy where direct 2016 archives are limited):
- Bangor Line: Services connecting Belfast with Bangor were a staple. Archived timetable information suggests departures from Botanic to Bangor, such as at 12:10 and 12:40. Timetables for the Bangor line indicate a general pattern of half-hourly services, with increased frequency during peak commuting hours.
- Derry~Londonderry Line: Trains operating on the route to Derry~Londonderry also served Botanic. The same proxy data indicates a departure towards Derry~Londonderry from Botanic at 12:15.
- Larne Line: Commuters and travellers heading towards Whitehead and Larne Harbour could access services from Botanic. A departure to Whitehead was noted at 12:20 in the proxy data.
- Portadown/Newry Line and Enterprise to Dublin: While Botanic is situated on the main southern corridor, direct services to Portadown, Newry, and the cross-border Enterprise service to Dublin primarily originated from Belfast Central Station (later renamed Lanyon Place) or Great Victoria Street Station. Local services on the Portadown line would have likely served Botanic, providing connections towards Lisburn and Portadown. The Enterprise service, which saw a £12.2 million upgrade completed in the 2015/16 period, was a key intercity link but did not typically stop at Botanic.
In addition to rail services, Botanic Station was integrated with Belfast's bus network. Belfast Metro Route 7 services provided connections from the station to the City Centre, Four Winds, Laurelgrove, Braniel, and Stormont. Furthermore, Ulsterbus service 625, operating between the City Centre, Ballynahinch, and Carryduff, also had stops in proximity to the station.
Consolidated View of Train Services at Botanic Station (June 2016):
- Lines Served: Bangor Line, Derry~Londonderry Line, Larne Line, and local services on the Portadown Line.
- Key Destinations (Direct or via Belfast Central/Great Victoria St): Bangor, Holywood, Lisburn, Portadown, Lurgan, Coleraine, Derry~Londonderry, Larne Harbour, Whitehead, Carrickfergus, and Antrim.
- Typical Weekday Frequency (Indicative):
- Bangor Line: Approximately 2-3 trains per hour (tph) during peak times and 2 tph during off-peak times.
- Derry~Londonderry Line: Approximately 1 tph, with some variations.
- Larne Line: Approximately 1-2 tph combined for Whitehead and Larne Harbour, with variations.
- Portadown Line: Approximately 2 tph serving local stops towards Lisburn and Portadown.
- Primary Belfast Termini (June 2016): Great Victoria Street Station and Belfast Central Station (later Lanyon Place).
This baseline is crucial for assessing the "real extent" of service improvements in subsequent years. The combination of multiple rail lines and connecting bus services positioned Botanic as a significant, albeit not primary, interchange point within Belfast's public transport network in 2016.
2.2 Performance, Challenges, and Passenger Experience: NI Railways in 2016
The period around June 2016 was one of mixed fortunes for NI Railways. While facing significant external pressures, the operator managed to sustain service delivery and even achieve growth in some areas.
Overall NI Railways Performance (2015/16 - 2016/17):
- Passenger journeys increased from 13.5 million in 2015/16 to 14.2 million in 2016/17.
- Punctuality (2015/16): 98.5% for local services, 99.5% for long-haul services.
- Punctuality (2016/17): 99.1% for local services, 95.1% for long-haul services.
- Operational reliability: Consistently maintained at 100% for both local and long-haul services across these two years.
- Customer Performance Index (CPI): Improved from 79.3% in 2016 to 80.5% in 2017.
- Overall Translink passenger satisfaction: 88% rated services as good or excellent, with NI Railways itself scoring above 90%.
The ability to maintain high operational reliability and grow passenger numbers amidst significant funding pressures suggests considerable operational resilience.
Challenges in 2016:
- Financial Climate: Substantial constraints due to reductions in public spending and cuts to Translink's funding, necessitating cost reductions, above-inflation fare increases, and service adjustments.
- Knockmore Junction Collision (4 February 2016): A passenger train struck an excavator bucket negligently left on the track. The train was badly damaged, though no significant injuries occurred. The Rail Accident Investigation Branch (RAIB) report highlighted failures in post-engineering work checks and informal communication. This incident impacted service reliability and safety scrutiny.
Passenger Experience and Feedback:
- Feedback mechanisms were primarily through the Consumer Council for Northern Ireland.
- Translink's first "Bus and Train Week" (May 2016) reportedly generated over 140,000 additional journeys.
Infrastructure Developments around 2016:
- £12.2 million mid-life refurbishment of the cross-border Enterprise fleet completed (2015/16).
- Second phase of the Derry~Londonderry to Coleraine railway line upgrade completed (2016/17), paving the way for an hourly service.
- New station at Bellarena on the Derry~Londonderry line opened (21 March 2016).
- Castlerock station signal box closed (2 November 2016), and its down platform was taken out of service.
These developments demonstrate a dynamic period of network adjustment.
2.3 Transformation of Belfast's Rail Infrastructure and Services Post-2016
The period following 2016 has been marked by transformative changes, most notably the development of Belfast Grand Central Station.
Belfast Grand Central Station Project:
- Envisioned as a state-of-the-art integrated transport hub.
- Construction officially commenced in 2019; significant enabling works began in February 2021.
- Soft opening for bus services: 8 September 2024.
- Official opening for rail services: 13 October 2024.
- Aims to enhance connectivity, service reliability, and efficiency.
- The surrounding area is being redeveloped as 'Weaver's Cross'.
- Significant short-term disruption occurred, e.g., temporary closure of the Lisburn to Belfast Lanyon Place line (from 3 July 2024), affecting Botanic and City Hospital stations.
Impact on Existing Lines and Stations:
- Great Victoria Street station closed permanently on 10 May 2024.
- Botanic and City Hospital stations were scheduled to reopen with Grand Central's rail services.
- A key change: lines such as the Portadown line now terminate at Grand Central. Passengers from this line to destinations like Botanic must now interchange at Grand Central, shifting towards a more centralised hub-and-spoke model for some services.
Other Network Improvements:
- Ongoing track and signalling upgrades, guided by initiatives like the All-Island Strategic Rail Review.
- Procurement of 23 new carriages, allowing extension of seven Class 3000/4000 trains from three-car to six-car formations.
- Irish Rail introduced new intercity carriages in 2023, benefiting cross-border services.
- Enhanced cycle and taxi provisions at Grand Central (300 cycle parking spaces).
- Irish Rail trialling new accessibility technologies (WelcoMe and NaviLens).
2.4 Botanic Train Station: Current Services and Role in the Reconfigured Network
Following its temporary closure, Botanic Train Station reopened in October 2024. As of April 2025, it is fully operational.
Current Lines Served (Post-Grand Central Opening):
- Bangor Line: Typically a half-hourly service between Belfast Grand Central and Bangor, with additional peak trains.
- Derry~Londonderry Line: An hourly service between Grand Central and Derry~Londonderry, supplemented by peak-time trains to Coleraine.
- Larne Line: Services operate half-hourly to Larne Harbour and Whitehead (alternating termini), with extra peak trains to Carrickfergus and Larne Town.
- Portadown/Newry Line: Passengers wishing to use Botanic Station must now interchange at Belfast Grand Central Station.
The frequency of services at Botanic is generally half-hourly or hourly per line, with peak enhancements. The station remains a crucial link. The NI Railways Route Map illustrates Botanic's position between City Hospital and Lanyon Place.
Passenger numbers at Botanic Station: Reached 1.176 million in 2023/24, surpassing immediate post-pandemic lows and indicating a return to, and in some comparisons, exceeding pre-pandemic usage (e.g., 1.26 million in 2018/19, 1.199 million in 2019/20). This highlights its enduring importance for commuters, students, and visitors.
2.5 Assessing the Trajectory of Improvement in Belfast's Train Services
Evaluating Belfast's train services since June 2016 reveals significant, albeit nuanced, improvement.
Quantitative Improvements:
- Overall NI Railways passenger numbers: Rose from 13.5 million (2015/16) to a pre-pandemic peak of 15.8 million (2018/19). Post-pandemic recovery is underway.
- Botanic Station passenger numbers: Grew from 986,782 (2015/16) to 1.26 million (2018/19), recovering to 1.176 million (2023/24).
- Service frequencies: Enhancements on lines like Derry~Londonderry (more consistent hourly service post-2016/17 upgrades).
- Punctuality/Reliability: Remained high, though with fluctuations. Long-haul punctuality was 99.5% in 2016, 95.1% in 2017. Translink reported average rail punctuality at 96.2% (up to March 2025).
Qualitative Improvements:

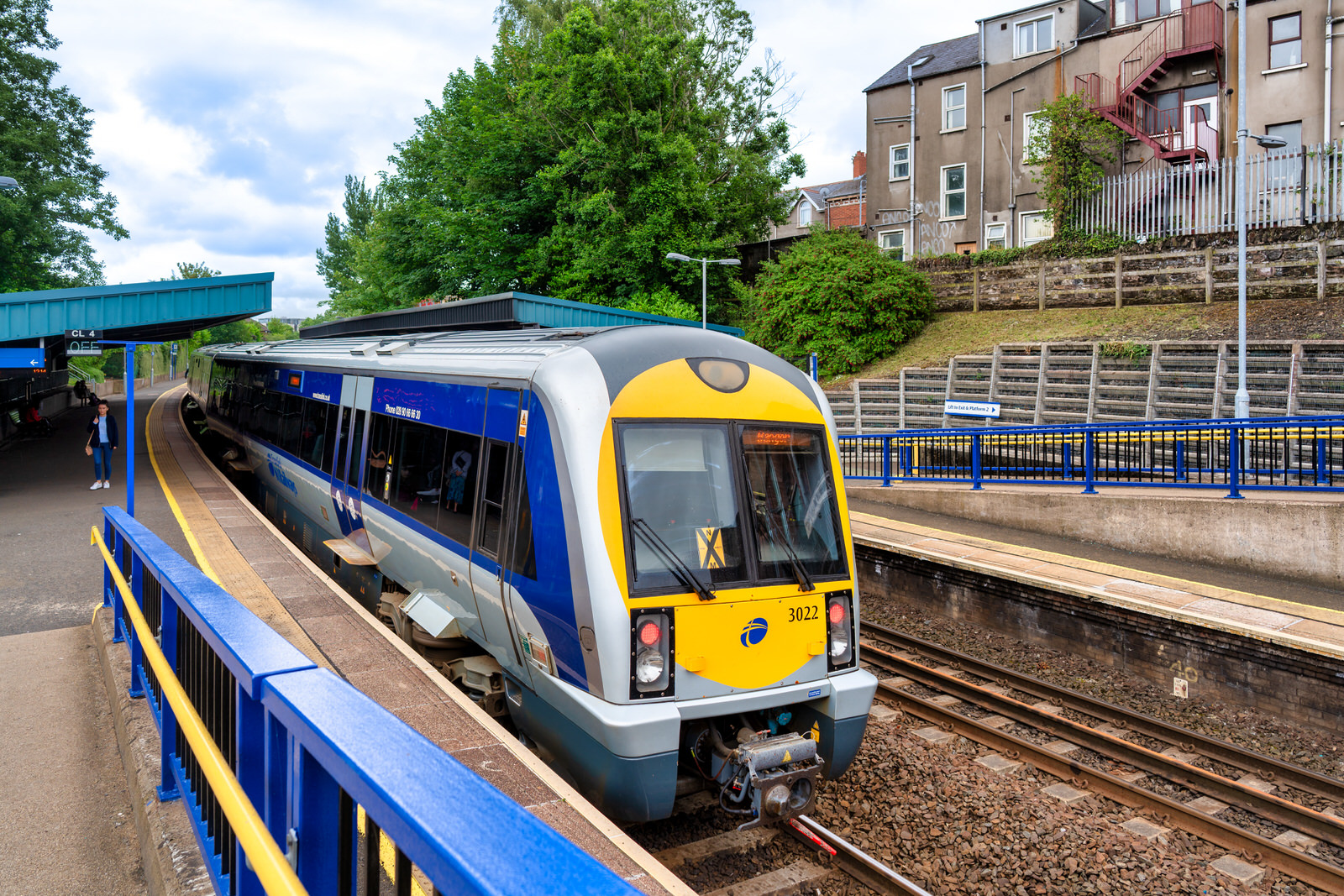

- Rolling Stock: New CAF-built Class 4000 trains (from 2010), Enterprise fleet refurbishment (completed 2015/16), extension of some Class 3000/4000 units.
- Station Infrastructure: Opening of Belfast Grand Central Station and earlier opening of York Street station.
- Ticketing: Widespread adoption of mLink mobile app and iLink smartcards.
- Accessibility: Continued priority in new infrastructure.
Comparison of Key Performance Indicators (NI Railways 2016 vs. Present):
- Total NI Railways Passenger Numbers:
- 2015/16 (or nearest): 13.5 million.
- 2022/23 (latest available, recovery ongoing): 11.5 million.
- Botanic Station Passenger Numbers:
- 2015/16: 986,782.
- 2023/24: 1.176 million.
- NI Railways Punctuality (Local/Long Haul):
- 2015/16: 98.5% (local), 99.5% (long haul).
- Overall rail punctuality up to March 2025: 96.2%.
- NI Railways Reliability:
- 2015/16: 100.0% (local and long haul). Recently remained high.
- Customer Performance Index (NI Railways):
- 2016: 79.3%.
- Recent overall Translink satisfaction: 88%, with NI Railways itself scoring over 90%.
Areas of Continued Challenge or Mixed Impact:
The opening of Grand Central Station, while a major strategic improvement, has introduced new interchange requirements for some (e.g., Portadown line to Botanic). The "real extent" of improvement for these journeys depends on interchange efficiency. Continued progress relies heavily on sustained public funding. The balance between network-wide goals and localised impacts remains delicate.
3. The Belfast Glider: A Modern Transit Solution
The Belfast Glider, a Bus Rapid Transit (BRT) system, represents a significant modernisation of Belfast's public transport network.
3.1 Genesis and Operational Framework of the Glider Service
Launched on 3 September 2018, following construction from 2014. Initial cost: £90-£100 million. Aimed to be an "eco-hybrid tram on wheels."
Technical Specifications:
- Vehicles: 18-metre-long Van Hool ExquiCity articulated diesel-hybrid electrical buses with three doors.
- Interior Amenities: Mix of seating/standing, free Wi-Fi, USB charging, real-time information, CCTV.
- Halts: Spaced approx. 400 metres apart (traditional bus stops 150-250 metres). Feature shelters, seating, off-board ticket vending machines, Kassel kerbs for level boarding. Standard halts are 18 metres, extendable to 30 metres.
- Bus Lanes: Dedicated, typically operational 07:00-19:00, Monday-Saturday. Phased introduction in July/August 2018.
Operational Model (BRT Hallmarks):
- Off-Board Fare Collection: Tickets purchased at halts before boarding.
- Service Frequency (Weekdays): Every 7-9 minutes, increasing to 4-6 minutes during peak.
- Operating Hours (Weekdays): 5 a.m. – 11 p.m.
3.2 Current Glider Operations: Routes, Ridership, and Reception
The Glider operates on two primary routes.
Current Routes:
- G1 (East-West): McKinstry Road roundabout (West Belfast) to Dundonald Park & Ride (East Belfast). Traverses Stewartstown Road/Falls Road, city centre, Albertbridge Road, Upper Newtownards Road. Serves Waterfront Hall, St George's Market, Lanyon Place Train Station, Europa Bus and Rail Centre, Ballyhackamore, Stormont Estate.
- G2 (City Centre - Titanic Quarter): Continual loop connecting city centre with Titanic Quarter. Serves SSE Arena, Titanic Belfast, Catalyst Inc science park, Belfast City Hall.
Ridership and Usage:
- Glider and Metro bus services combined: 29.1 million passenger journeys (2023-24), 45.2% of total 78.2 million public transport journeys in Northern Ireland.
- Passenger satisfaction (Translink survey): 86% for Glider (NI Railways, Goldliner, Ulsterbus >90%; Metro bus 71%).
Public and Political Reception:
Introduced for convenience and modernity. Expansion plans have elicited mixed reactions: support for accessibility and economic benefits versus criticism over scaled-back plans and delays.
Summary of Current Belfast Glider Service Operations:
G1 (East-West) Route:
- Termini: McKinstry Road Roundabout (West) – Dundonald Park & Ride (East).
- Key Corridors/Landmarks: Falls Rd, City Centre, Albertbridge Rd, Upper Newtownards Rd, Waterfront Hall, Lanyon Place Stn, Europa Buscentre, Stormont.
- Typical Weekday Hours: 5 a.m. – 11 p.m.
- Peak Frequency: 4-6 minutes.
- Off-Peak Frequency: 7-9 minutes.
- Key Vehicle/Halt Features: Articulated hybrid buses, 3 doors, Wi-Fi, USB, real-time info; Covered halts, off-board ticketing, level boarding.
G2 (City Centre - Titanic Quarter) Route:
- Termini: City Centre – Titanic Quarter (Loop Service).
- Key Corridors/Landmarks: City Hall, Odyssey (SSE Arena), Titanic Belfast, Catalyst Inc.
- Typical Weekday Hours: 5 a.m. – 11 p.m.
- Peak Frequency: 4-6 minutes.
- Off-Peak Frequency: 7-9 minutes.
- Key Vehicle/Halt Features: As G1.
3.3 Future Horizons: Expansion Plans for the Glider Network
Plans focus on a North-South corridor and G2 extension (Phase 2 - BRT2), but have undergone revisions. Work anticipated to commence late 2025.
Key Components of Expansion:
- G2 Extension: To Queen's University and City Hospital via Great Victoria Street, Bruce Street, Dublin Road, University Road, Elmwood Avenue, returning via Lisburn Road and Great Victoria Street.
- New North-South Route (Scaled Back):
- South Belfast Section: City Hall via Great Victoria Street, Bruce Street, new Bankmore Link, Ormeau Road, to Ravenhill Road intersection, along Saintfield Road. Terminates before Carryduff (likely Cairnshill Park and Ride).
- North Belfast Section: City Hall via Donegall Place, Royal Avenue, Donegall Street, Clifton Street to Carlisle Circus, along Antrim Road. Terminates before Glengormley.
Revisions to Original Plans:
Initial proposals for South Belfast to Carryduff and North Belfast to Glengormley deemed unviable in the current phase (economic viability for Carryduff; congestion, existing schemes, limited funding for Glengormley).
Cost and Funding:
- Estimated cost (full North-South route): £148 million.
- Secured funding: £35 million (Belfast Region City Deal).
- Department for Infrastructure intends to proceed with full G2 extension as an early phase using available funds.
Timeline:
- October 2022 suggestion: Operational by Autumn 2027 (subject to funding).
- February 2025 DfI statement: Could be 2030 for full Phase 2 routes.
- Public consultation initiated: 26 July 2021.
Summary of Belfast Glider Expansion Plans:
G2 Extension:
- Key Corridors/Destinations: Queen's University, City Hospital, Dublin Rd, University Rd.
- Current Planned Terminus: City Hospital/Queen's University area loop.
- Funding: Prioritised within available £35m (part of overall £148m N-S estimate).
- Projected Operational Date: Potentially earlier in phased delivery; full N-S route by 2030.
North-South Route (North Leg):
- Key Corridors/Destinations: City Hall, Royal Avenue, Antrim Road (to near Glengormley).
- Original Planned Extent: To Glengormley.
- Current Planned Terminus: Antrim Road (before Glengormley).
- Estimated Total Cost (N-S): £148 million (combined).
- Secured Funding (N-S): £35 million (Belfast Region City Deal).
- Projected Operational Date: Potentially 2030.
North-South Route (South Leg):
- Key Corridors/Destinations: City Hall, Great Victoria St, Ormeau Rd, Saintfield Rd (to Cairnshill P&R).
- Original Planned Extent: To Carryduff.
- Current Planned Terminus: Cairnshill Park and Ride (before Carryduff).
- Estimated Total Cost (N-S): £148 million (combined).
- Secured Funding (N-S): £35 million (Belfast Region City Deal).
- Projected Operational Date: Potentially 2030.
4. The Glider in Context: Understanding Bus Rapid Transit (BRT) Adoption
Examining BRT characteristics, global trends, and implementation challenges provides context for the Belfast Glider.
4.1 Defining Bus Rapid Transit: Characteristics and Advantages
BRT aims to combine the capacity/speed of light rail/metro with the flexibility/lower cost of conventional buses.
Core BRT Features:
- Dedicated Bus Lanes (often median-aligned).
- Off-Board Fare Collection.
- Bus Priority at Intersections (traffic signal priority).
- Station-like Halts (shelters, seating, real-time info, level boarding).
- High-Capacity Vehicles (articulated/bi-articulated).
- Distinct Branding and Service Identity.
The Belfast Glider incorporates many of these, aiming for "tram-like" quality.
Advantages of BRT:
- Speed and Reliability: Faster, more predictable due to dedicated rights-of-way.
- Increased Capacity: Carries more passengers than conventional buses (e.g., Bogotá's TransMilenio).
- Lower Capital Costs: Substantially less than LRT/metro (no extensive track laying).
- Flexibility: Routes modifiable more easily/cheaply than fixed-rail.
- Improved Passenger Experience: Modern vehicles, comfortable stations.
- Environmental Benefits: Modal shift from cars, cleaner technologies (hybrid, electric, CNG).
Scalability allows phased implementation ("BRT-lite" to "Gold Standard" BRT) but risks "BRT creep" if core features are omitted.
Comparative Analysis: Conventional Bus vs. BRT vs. Light Rail Transit (LRT)
Feature |
Conventional Bus |
Bus Rapid Transit (BRT) |
Light Rail Transit (LRT) |
---|
Dedicated Right-of-Way |
Rarely; mixed traffic |
Typically extensive (dedicated lanes, busways) |
Almost always on segregated tracks/alignments |
Vehicle Capacity |
Standard (approx. 50-80) |
High (articulated, approx. 100-180+) |
Very High (multi-car trams, 200+) |
Average Speed |
Low, affected by congestion |
Moderate to High |
Moderate to High, often faster in segregated sections |
Station/Stop Type |
Basic shelters/poles |
Station-like halts, off-board fares, level boarding |
Stations, off-board fares, level boarding |
Fare Collection |
On-board |
Typically off-board at stations |
Typically off-board or on-board multi-door validation |
Typical Capital Cost |
Low (vehicle purchase) |
Medium (vehicles, lanes, stations) - less than rail |
High (vehicles, track, electrification, stations) |
Route Flexibility |
High |
Moderate (can operate off-busway) |
Low (fixed to tracks) |
Public Perception |
Often negative (slow, unreliable) |
Positive if well-implemented; risk of "bus stigma" |
Generally positive (modern, reliable, permanent) |
4.2 Global Adoption Trends and Influencing Factors for BRT
Adoption varies globally. Over 200 active BRT systems. Prominent in Latin America (Bogotá, Curitiba) and Asia (China).
- Favouring Factors: High population densities, lower car ownership (historically), urgent need for high-capacity transit where rail is too costly/slow, strong political will, robust institutional capacity. Success of early systems like TransMilenio (up to 35,000 passengers/hour/direction) encouraged adoption.
- European Context: LRT often preferred for urban development stimulation, city image, "permanence," pedestrian integration, even if BRT is economically favourable. "BRT" term less used as high-quality bus services often have BRT-like features. Trend towards cleaner vehicles (battery-electric). Studies show LRT/Streetcar ridership often higher due to capacity, service levels, densities, not just mode. "European bonus ridership factor" (higher public transport mode share, extensive networks, conducive urban forms).
- UK Case Study (Cambridge Guided Busway): BRT-like system chosen for A14 corridor congestion and growth, driven by government recommendation/funding.
Curitiba's 50-year evolution shows BRT systems can adapt.
4.3 Impediments to Widespread BRT Implementation: Challenges and Criticisms
Despite advantages, BRT is not as common as expected in some developed contexts.
- High Initial Investment and Infrastructure Needs: Substantial capital for dedicated lanes, stations, fleet, systems. Land acquisition and reallocating road space are complex, costly, politically contentious.
- Political and Institutional Challenges: Requires strong, sustained political will. Opposition from existing operators, car lobbies. Institutional complexities (coordination between departments). Lack of technical capacity or leadership continuity.
- Public Perception and "BRT Creep": Negative "bus stigma" compared to perceived prestige of rail. "BRT creep" (systems marketed as BRT but lacking core features) delivers marginal improvements, damages BRT concept credibility (e.g., ITDP rating Boston Silver Line, NYC Select Bus Service as "Not BRT"). Perceived lack of "permanence" deters transit-oriented development.
- Operational, Technical, and Environmental Challenges: Seamless integration with other modes, passenger flow management. Not immune to disruptions. Poor design can create conflicts (pedestrians, cyclists). Diesel engines cause pollution (addressed by cleaner fleets like Belfast Glider's hybrids, electric buses).
- Economic and Financial Viability: Securing sustained funding for capital and operations. Belfast Glider expansion scaled back due to funding/viability issues. In high-wage economies, BRT operational costs can be higher than rail over project life (more vehicles/drivers for same capacity, shorter vehicle lifespans).
4.4 The Belfast Glider: A Unique Case or a Replicable Model?
Belfast Glider: valuable UK/European BRT case study. Largely aligns with core BRT principles (dedicated lanes, off-board ticketing, high frequency, quality vehicles/halts), suggesting commitment to "true BRT."
- Factors for Initial Success: Strong political backing, significant upfront investment (£90-£100m). Strategic focus on high-demand corridors (East-West G1, Titanic Quarter G2). Integration with Translink network (mLINK, iLink).
- Challenges: Initial operational congestion (e.g., temporary suspension of Titanic Quarter bus lanes). Phase 2 expansion hurdles (funding, economic viability for extensions to Carryduff/Glengormley), highlighting challenges of extending BRT to less dense/more congested areas. Mixed reactions to scaled-back plans show difficulty managing expectations.
- Lessons for Other Cities: Well-designed, well-funded BRT can succeed in European cities. Challenges (funding, road space reallocation, managing expectations) are common. Replicability depends on: sustained political leadership, long-term funding, meticulous route planning, transparent public engagement, commitment to high service quality. Importance of integration within a holistic, multi-modal strategy (e.g., Yichang's concurrent BRT, traffic, parking, active travel development).
5. Conclusion: Belfast's Public Transport Trajectory and Future Considerations
Belfast's public transport since June 2016 has undergone significant transformation, with substantial investment, notable improvements, and ongoing challenges.

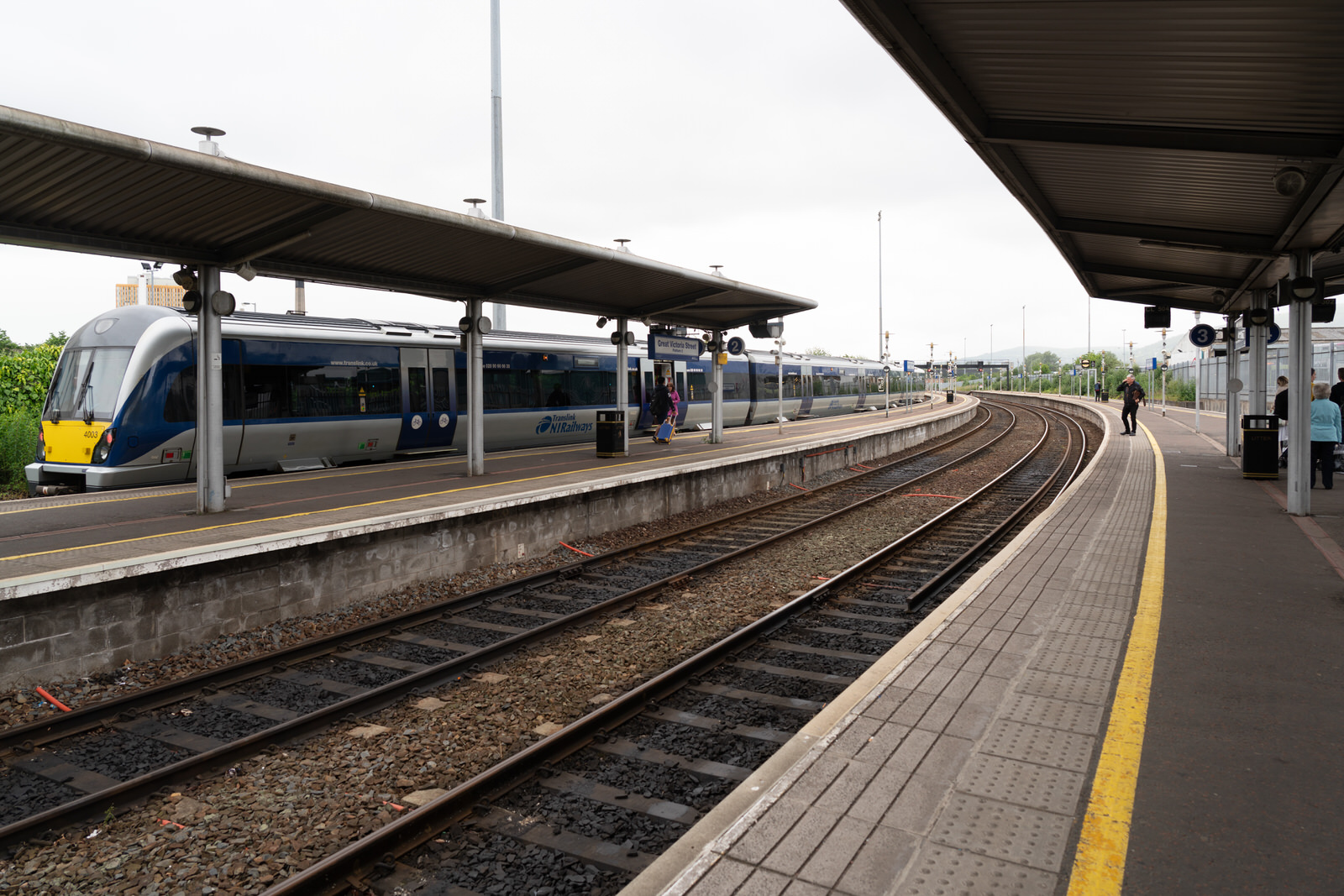

Botanic Train Station maintained its crucial role in 2016. Despite pressures, NI Railways showed resilience and growth. Subsequent years saw improvement, driven by the Belfast Grand Central Station project. This new hub reshaped services, enhancing connectivity but requiring new interchanges for some (e.g., Portadown line to Botanic). Botanic Station has recovered robustly, its passenger numbers underscoring its continued strategic importance. Network-wide enhancements (rolling stock, ticketing) further improved NI Railways.
The Glider (launched 2018) quickly became vital. Adherence to core BRT principles delivered a "tram-like" experience, attracting significant ridership. Planned Phase 2 expansion (North-South network, G2 extension) shows commitment, but scaling back due to funding/viability illustrates pragmatic challenges and dependency on sustained financial backing.
The Glider's experience reflects broader BRT adoption issues. Advantages (cost-effectiveness, flexibility, capacity) are often offset by hurdles: high upfront costs, political difficulty reallocating road space, negative public perception of buses versus rail, and "BRT creep." The Glider's relative success stems from strong initial backing, focus on high-demand corridors, and commitment to genuine BRT features.
Looking forward, successful integration of major projects (Grand Central) with targeted enhancements (Glider) is paramount. Sustained investment (capital and operational) is critical. Integrated multi-modal planning (rail, bus, active travel) is essential to provide an attractive alternative to private cars.
Belfast's public transport journey since 2016 demonstrates a commitment to modernisation. It also highlights complexities in transforming urban mobility, requiring a balance of strategic ambition, financial realities, infrastructure constraints, and diverse public needs. Continuous evaluation, adaptive management, and a steadfast focus on passenger experience are key to realising the full potential of Belfast's evolving transport network.
